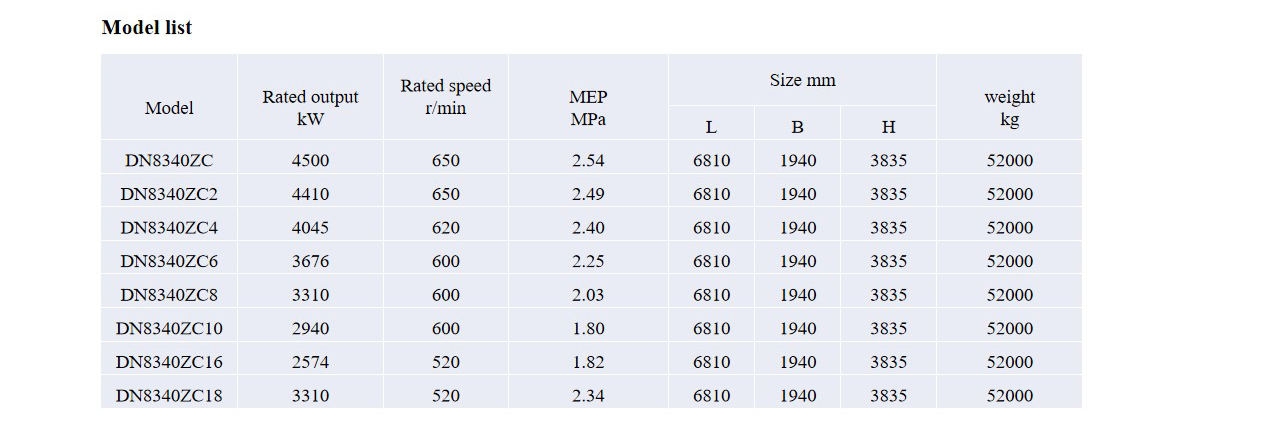

Diesel Engine Main Specification:

Rated power: 2574~4500kW （3500~6120 HP）

Engine Type:  Four  stroke,  Direct injection, Turbocharged, Intercooled

Cyl. No: In line 8

Bore×Stroke : 340×450mm

Engine Rev: 520~650 rpm

Compression Rate: 13.5:1

Mean effective pressure: 20.1~24.3bar

Fuel consumption ratio: 184+3%g/kW·h

Lube  oil consumption rate: ≤0.6g/kW·h

NOx Emission: IMO Tier II

Piston lifting height: 2400 mm above crankshaft centerline
